Turning Inserts >DCGT11T304MR-SS

Turning Inserts

DCGT11T304MR-SS

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MS6015
ANSI DCGT32.51MRSS
Hand R
Stock
Unit of Length M

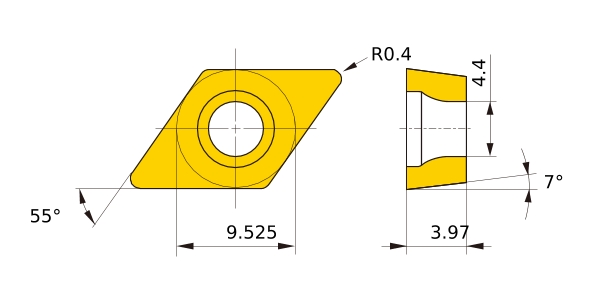

D1 4.4
IC 9.525
EPSR 55°
GAN 14°
AN 7°
LBB 1
LE 6.5
S 3.97
RE 0.4
Breaker R-SS
