Turning Inserts >BTBT604501MR-B

Turning Inserts

BTBT604501MR-B

Product Information

The actual product may differ from the displayed image.

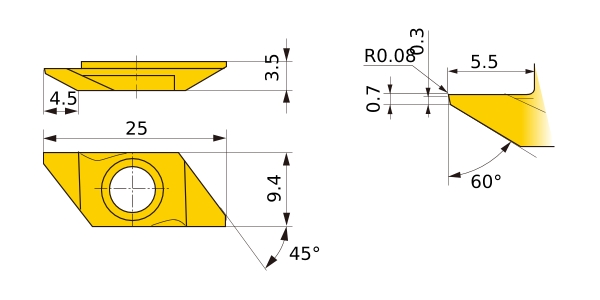

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MS6015
ANSI BTBT604501MR-B
Hand R
Stock
Unit of Length M
EPSR 45°
PSIRR 60°
CDX 5.5
LE 4.5
L 25
W1 9.4
CW 0.7
S 3.5
CF 0.3
REL 0.08
Breaker B
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • External Holder
