Turning Inserts >CTBT20160V5RR-B
CTBT20160V5RR-B
The actual product may differ from the displayed image.

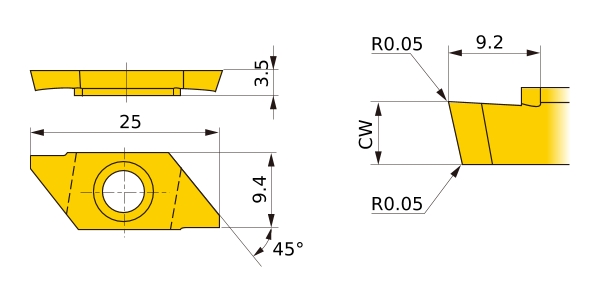

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | MS6015 |
| ANSI | CTBT20160V5RR-B |
| Hand | R |
| Stock |
|
| Unit of Length | M |
| CUTDIA | 16 |
| B9 | 16° |
| EPSR | 45° |
| CDX | 9.2 |
| LE | 5.5 |
| L | 25 |
| W1 | 9.4 |
| CW | 2 |
| S | 3.5 |
| REL | 0.05 |
| RER | 0.05 |
| Breaker | B |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | VP15TF |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
