Turning Inserts >DCGT11T302MR-SN

Turning Inserts

DCGT11T302MR-SN

Product Information

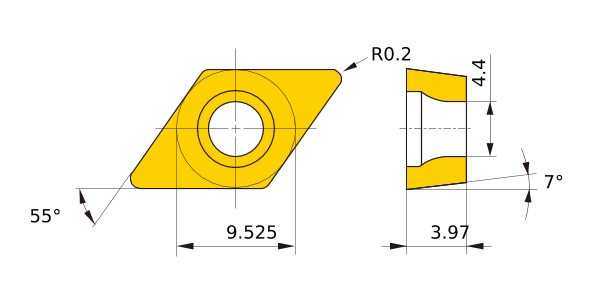

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MS7025
ANSI DCGT32.50.5MRSN
Hand R
Stock
Unit of Length M
D1 4.4
IC 9.525
EPSR 55°
AN 7°
LBB 1.5
LE 6.5
S 3.97
RE 0.2
Breaker R-SN
