Información sobre productos

  • Óptimo filo de corte para mecanizado de aleaciones de aluminio.

The actual product may differ from the displayed image.

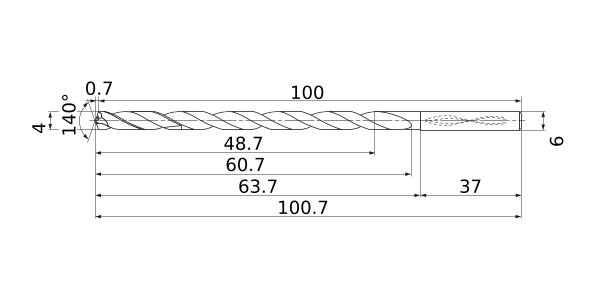

For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nombre de calidad Metal Duro
Calidad TF15
Existencia
Unidad de longitud M
D1 4
D4 6
DC 4
DCON 6
SIG 140°
LF 100
OAL 100.7
LH 63.7
LU 48.7
LCF 60.7
LS 37
FHA 30°
ld 12
PL 0.7
Effective Cutting Edge 2
Tolerancia máx. de diámetro de filo de corte 0.016
Tolerancia mín. de diámetro de filo de corte 0.004
Tipo de refrigerante Interior
