MMS0690L-DIN

Información sobre productos

  • Uso de una geometría de agujero de refrigeración que mejora el efecto refrigerante. Vida útil más prolongada y la eficiencia de aceros "TRI-Cooling Technology".
  • El filo cóncavo mejora el afilado, mientras que el filo convexo mejora la fuerza total del filo de corte.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nombre de calidad Metal Duro
Calidad DP7020
Existencia

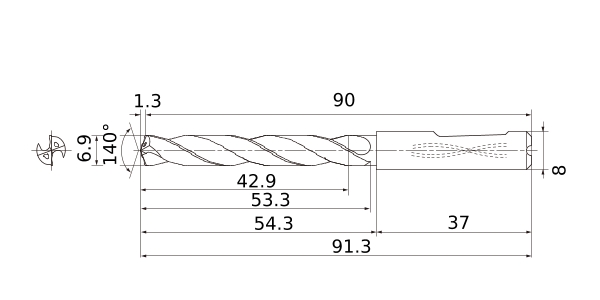

Unidad de longitud M
DC 6.9
DCON 8
SIG 140°
LF 90
OAL 91.3
LH 54.3
LU 42.9
LCF 53.3
LS 37
FHA 30°
ld 5
PL 1.3
Effective Cutting Edge 2
Tolerancia máx. de diámetro de filo de corte 0.021
Tolerancia mín. de diámetro de filo de corte 0.006
Tipo de refrigerante Interior
