Fresas(Con placa intercambiable)

VPX200_SHELL_MM


VPX200-032A02A035R10

Información sobre productos

  • La disposición tangencial de las placas garantiza una gran rigidez del portaherramientas.
  • Distintos métodos de mecanizado para cubrir una amplia variedad de aplicaciones

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Mano R
Existencia
Unidad de longitud M

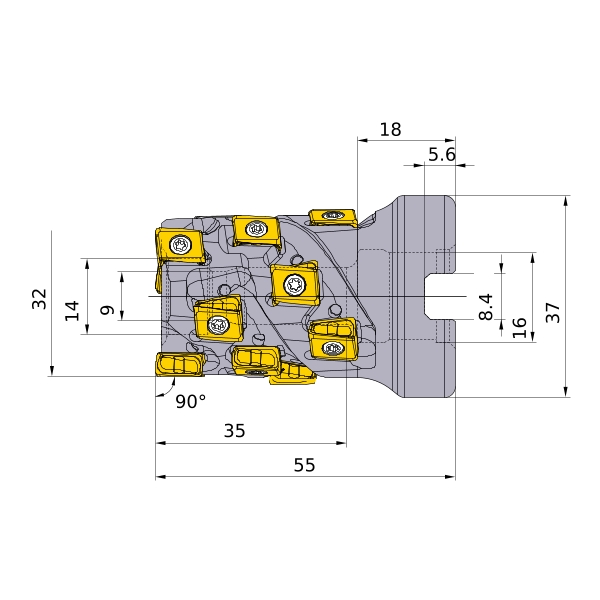

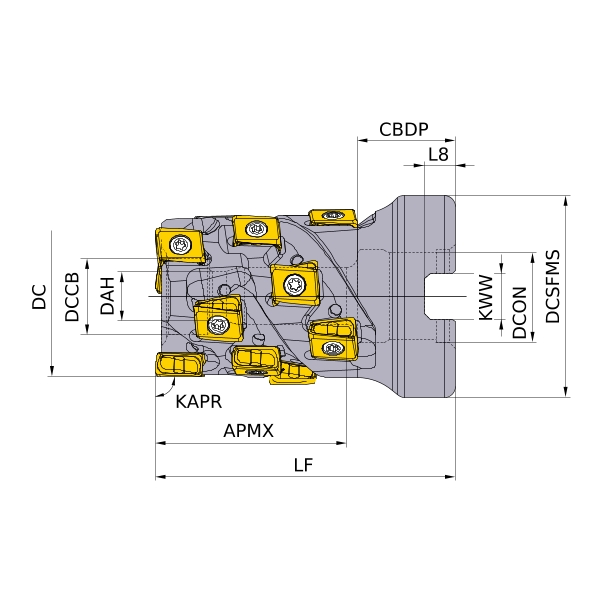

DC 32
DCON 16
DCSFMS 37
DAH 9
DCCB 14
KAPR 90°
RMPX 0.71°
L8 5.6
LF 55
CBDP 18
LCCB 8
KWW 8.4
APMX 35
GAMP -6°
GAMF ‒25°
WT 0.22
Cutting item count: CICT 10
Peripheral effective cutting edge count: ZEFP 2
Face effective cutting edge count: ZEFF 2
Modelo 2D (DXF)
Nombre datos CAD Descargar
