Fresas integrales >VQ2XLB >VQ2XLBR0100N100

Fresas integrales

VQ2XLB
（PUNTA ESFÉRICA, LONGITUD DE CORTE CORTA,2 HÉLICES, CUELLO LARGO）

VQ2XLBR0100N100

Información sobre productos

  • Un nuevo filo con una geometría única y resistente en forma de S proporciona una resistencia mejorada a las microroturas.
  • Recubrimiento SMART MIRACLE que proporciona una mejor resistencia al desgaste al mecanizar materiales difíciles de cortar.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Existencia

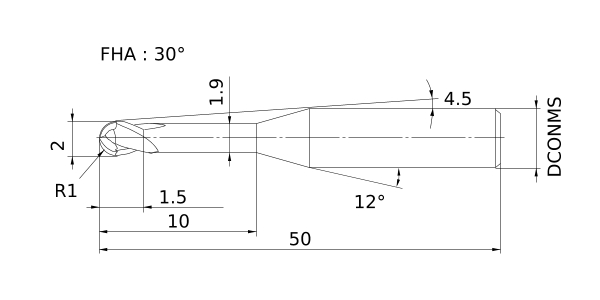

Unidad de longitud M
DC 2
DCON 4
DN 1.9
B2 4.5
BHTA2 12°
LF 50
LU 10
APMX 1.5
FHA 30°
RE 1
Peripheral effective cutting edge count: ZEFP 2
Tolerancia radial - -0.005
Tolerancia radial + 0.005
Recubrimiento VQ
