Fraises(Indexable)

AQX_WELDON
（Fraise "Hybrid Mill"）

AQXR504WA40L

Information Produit

  • Air centre outil
  • 1 type de plaquette amovible
  • Extrémité de coupe comportant 2 lèvres.
  • Arête inférieure centrale pour le perçage et le fraisage combiné sans pré-trou.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Agrandir ]

Type   [Agrandir ]

Diamètre (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Direction du P.O. R
Stock
Unité de longueur M

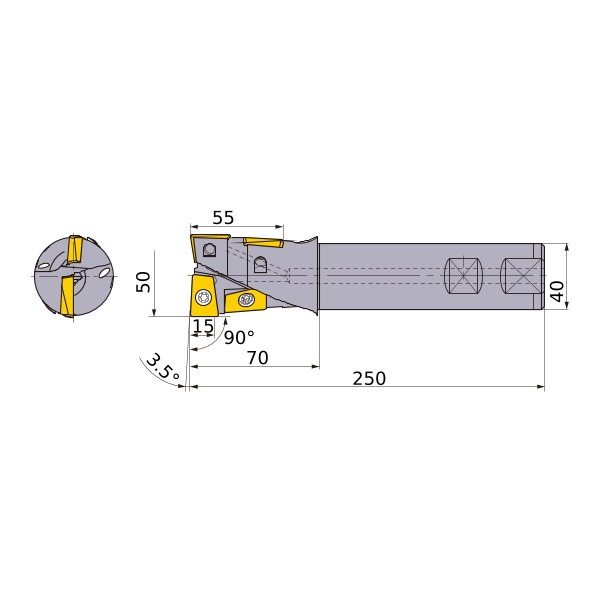

A3 15
DC 50
DCON 40
KAPR 90°
LF 250
LH 70
APMX 55
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
