Fraise monobloc >iMX_RC4F_C >IMX20RC4F200R05021C

Fraise monobloc

iMX_RC4F_C
（Embout d'ébauche, 4 dents）

IMX20RC4F200R05021C

Information Produit

  • Le profile de l'arête de coupe type ébauche réduit la résistance de coupe. Efficacité garantie en cas d'usinage de pièces peu rigides.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Agrandir ]

Type   [Agrandir ]

Diamètre (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Dénomination Nuance Carbure
Nuance EP7020
Stock
Unité de longueur M

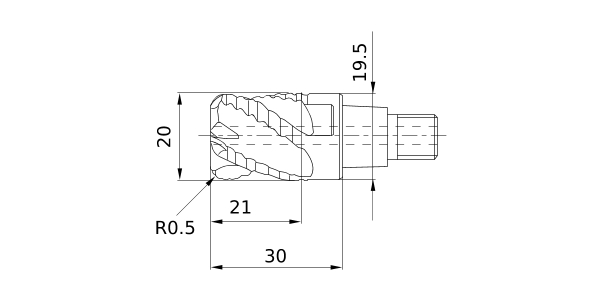

DC 20
DCON 19.5
LH 30
APMX 21
FHA 35°
RE 0.5
Peripheral effective cutting edge count: ZEFP 4
Effective Cutting Edge 4
2D Modèle (DXF)
Nom du fichier Télécharger
iMX20RC4F200R05021C
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

3D Modèle simplifié (STP,STL)
Nom du fichier Télécharger
iMX20RC4F200R05021C
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.
Show more

Stock

:Article standard stocké en Europe.
:Pas de stock, produit sur commande uniquement.
:Article standard stocké. Destiné à être remplacé par de nouveaux produits.
:Article standard stocké au Japon.

  • Condition de coupe recommandée

  • Pièces détachées
