Frezy palcowe(Z płytkami wieloostrzowymi)

VPX200


VPX200R2803SA25L

Informacje o produkcie

  • Średnica rdzenia korpusu frezu na płytki mocowane stycznie jest większa niż w narzędziach z płytkami mocowanymi promieniowo,
  • JEDNO NARZĘDZIE DO WIELU ZASTOSOWAŃ

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Typ   [Rozstrzelony ]

Typ   [Rozstrzelony ]

Średnica (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Wersja R
Dostępność

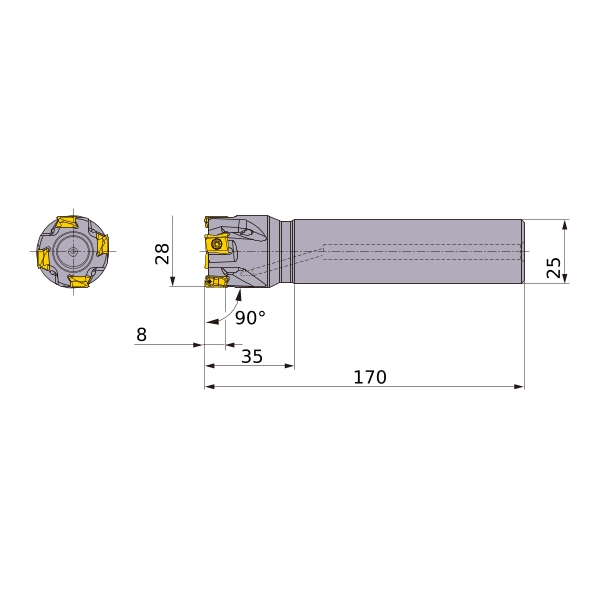

Jednostka długości M
DC 28
DCON 25
KAPR 90°
RMPX 0.84°
LF 170
LH 35
APMX 8
GAMP -6°
GAMF -25°
WT 0.61
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
Face effective cutting edge count: ZEFF 3
RPMX 27200
2D Model (DXF)
Nazwa modelu CAD Pobierz
VPX200R2803SA25L
CAD
