Frezy palcowe(Z płytkami wieloostrzowymi)

VPX200_WELDON


VPX200R3204WA32M

Informacje o produkcie

  • Średnica rdzenia korpusu frezu na płytki mocowane stycznie jest większa niż w narzędziach z płytkami mocowanymi promieniowo,
  • JEDNO NARZĘDZIE DO WIELU ZASTOSOWAŃ

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Typ   [Rozstrzelony ]

Typ   [Rozstrzelony ]

Średnica (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

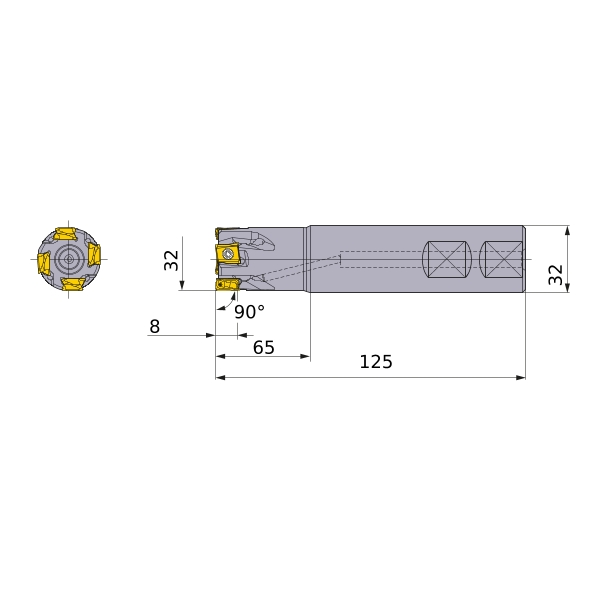

Wersja R
Dostępność
Jednostka długości M
DC 32
DCON 32
KAPR 90°
RMPX 0.71°
LF 125
LH 65
APMX 8
WT 0.68
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
Face effective cutting edge count: ZEFF 4
RPMX 25100
2D Model (DXF)
Nazwa modelu CAD Pobierz
VPX200R3204WA32M
CAD
