Frezy palcowe monolityczne

AM2SC
（Fraz palcowy, część robocza krótka, 2 ostrza, zataczana szyjka, z ostrzami centralnymi）

AM2SCD2000A100

Informacje o produkcie

  • Optymalny wybór do szybkiej obróbki aluminium.

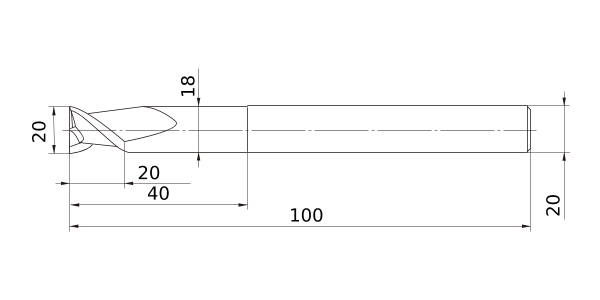

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Typ   [Rozstrzelony ]

Typ   [Rozstrzelony ]

Średnica (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Dostępność
Jednostka długości M
DC 20
DCON 20
DN 18
LF 100
LU 40
APMX 20
FHA 37.5°
Peripheral effective cutting edge count: ZEFP 2
Tolerancja maks. średnicy krawędzi skrawającej -0.02
Tolerancja min. średnicy krawędzi skrawającej -0.053
2D Model (DXF)
Nazwa modelu CAD Pobierz
AM2SCD2000A100
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

3D Lekki Model (STP,STL)
Nazwa modelu CAD Pobierz
AM2SCD2000A100
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.
Show more

Dostępność

:Standard magazynowy.
:Niestandardowy, produkowany na specjalne zamówienie.
:Standard magazynowy. Zostanie zastąpiony przez nowe wyroby.
:Na specjalne zamówienie z magazynu w Japonii.

  • Zalecane warunki obróbki
