Frezy palcowe monolityczne

VQ4SVB
（Frez kulisty, krótka część robocza, 4 ostrza, zmienny kąt pochylenia rowka wiórowego）

VQ4SVBR0600

Informacje o produkcie

  • 4-ostrzowy antywibracyjny frez palcowy kulisty z powłoką VQ.
  • Najlepszy wybór do obróbki wykańczającej.

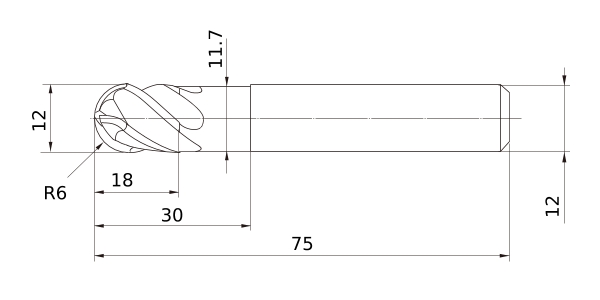

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Typ   [Rozstrzelony ]

Typ   [Rozstrzelony ]

Średnica (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Dostępność
Jednostka długości M
DC 12
DCON 12
DN 11.7
LF 75
LU 30
APMX 18
FHA 45°
RE 6
Peripheral effective cutting edge count: ZEFP 4
Tolerancja promienia R - -0.01
Tolerancja promienia R + 0.01
Tolerancja maks. średnicy krawędzi skrawającej 0
Tolerancja min. średnicy krawędzi skrawającej -0.02
Pokrywany VQ
