Płytki do toczenia

MGTR33400

Informacje o produkcie

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Typ   [Rozstrzelony ]

Typ   [Rozstrzelony ]

Średnica (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nazwa klasy (gatunku) Węglik
Klasa (Gatunek) UTi20T
Wersja R
Dostępność
Jednostka długości M

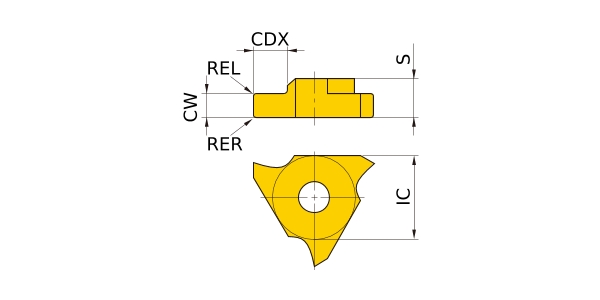

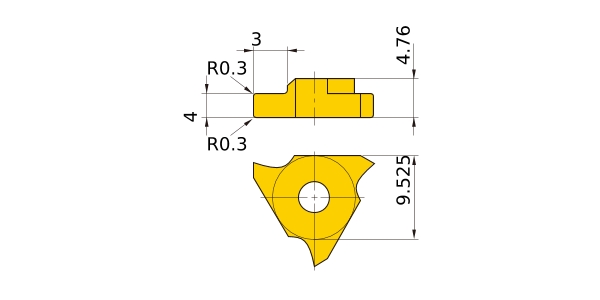

D1 4
IC 9.525
CDX 3
CW 4
S 4.76
REL 0.3
RER 0.3
Tolerancja CW:±0.025
Klasyfikacja
Pokrywany・Węglik VP20MF
Niepokrywane・Cermetal NX2525
