Boring >DPDU >DPDU132R

Boring

DPDU
（D Type Boring Head）

DPDU132R

Product Information

  • Economical negative insert.
  • Lever lock type.
  • Exchangeable head type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

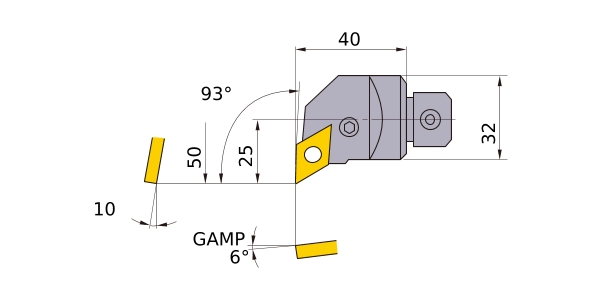

Unit of Length M
DMIN 50
DCON 32
KAPR 93°
LF 40
WF 25
GAMF 10
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__1504
