Boring >DPTF >DPTF140R

Boring

DPTF
（D Type Boring Head）

DPTF140R

Product Information

  • Economical negative insert.
  • Lever lock type.
  • Exchangeable head type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

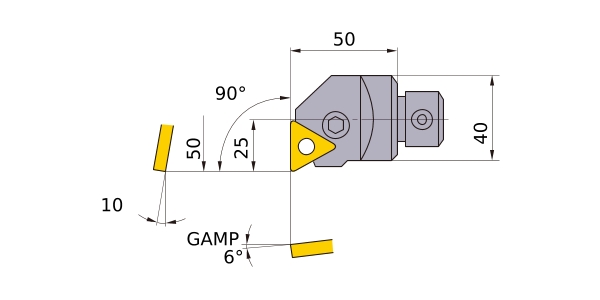

DMIN 50
DCON 40
KAPR 90°
LF 50
WF 25
GAMF 10
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number TN__2204
