FSVPB_C
(Dimple Bar)

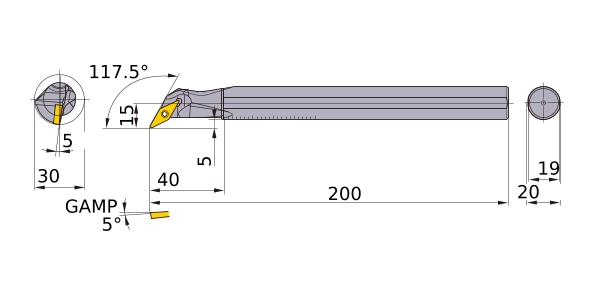

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | L |
Stock | ![]() |
Unit of Length | M |
DMIN | 30 |
DCON | 20 |
KAPR | 117.5° |
LF | 200 |
LDRED | 40 |
WF | 15 |
H | 19 |
WF2 | 5 |
GAMF | 5 |
RE | 0.4 |
Peripheral effective cutting edge count: ZEFP | 1 |
Insert Number | VB__1103 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
