Drills >MAE_MAS >MAE0300MB

Drills

MAE_MAS


MAE0300MB

Product Information

  • Pre-hole drilling for rolled tap.
  • Helical through coolant hole enables high speed machining (MAS type).
  • Specialized in aluminium and cast iron drilling.
  • High hole accuracy.

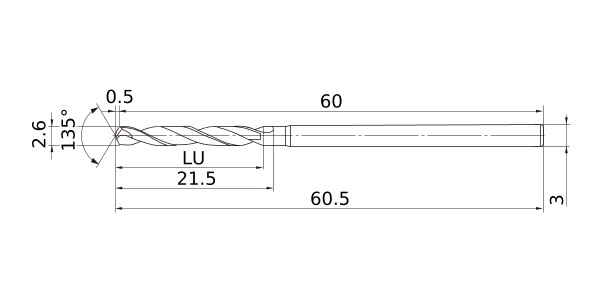

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Stock
Unit of Length M
DC 3
DCON 3
SIG 140°
LF 61
OAL 61.5
LU 9.5
LCF 21.5
FHA 30°
ld 3
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
