Drills >DCSSM >DCSSMD0280

Drills

DCSSM
（Medium, For non-ferrous material）

DCSSMD0280

Product Information

  • Due to the Diamond Coating original technology of our company, it excels in film adhesion. There is neither flaking off or cutting edge chipping. Consistent cutting is possible.

The actual product may differ from the displayed image.

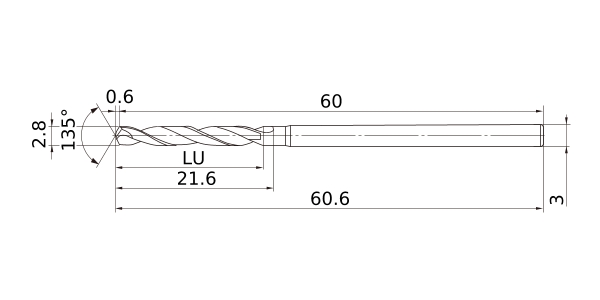

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 2.8
DCON 3
SIG 135°
LF 60
OAL 60.6
LCF 21.6
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.014
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
