Drills >GTTD >GTTDD2200M3

Drills

GTTD
（TiN, For steel frame）

GTTDD2200M3

Product Information

  • Special point geometry for minimal through hole burrs.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

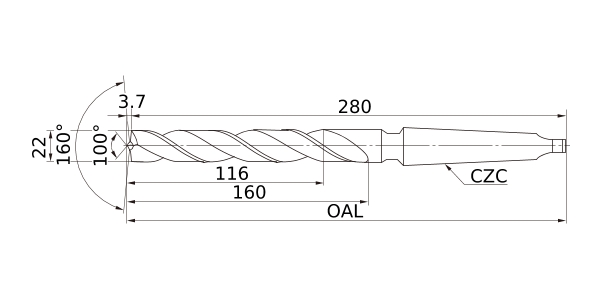

Unit of Length M
DC 22
SIG1 160°
SIG2 100°
LF 280
LCF 160
PL 3.7
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.033
M.T.NO. 3
CZC MT.3
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
