GTTD
(TiN, For steel frame)
The actual product may differ from the displayed image.

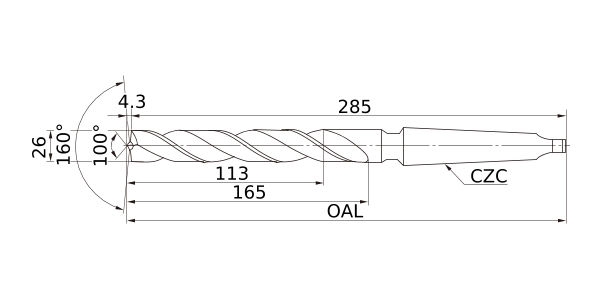

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 26 |
SIG1 | 160° |
SIG2 | 100° |
LF | 285 |
LCF | 165 |
PL | 4.3 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.033 |
M.T.NO. | 3 |
CZC | MT.3 |
Type of Coolant | External |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
