SD1_100
(Straight shank, 1/100mm)
The actual product may differ from the displayed image.

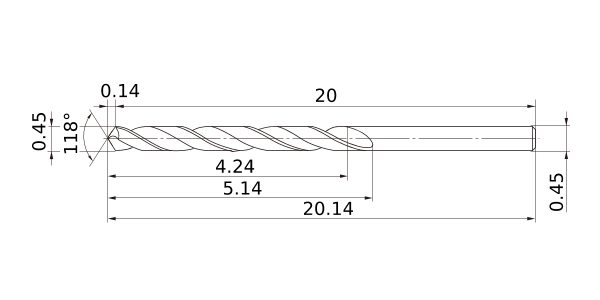

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | |
Unit of Length | M |
DC | 0.45 |
DCON | 0.45 |
SIG | 118° |
LF | 20 |
OAL | 20.14 |
LU | 4.24 |
LCF | 5.14 |
PL | 0.14 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.007 |
Type of Coolant | External |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
