Drills >VAPDMSUS >VAPDMSUSD0082

Drills

VAPDMSUS
（Medium, High precision, For stainless steel）

VAPDMSUSD0082

Product Information

  • Our new design and the violet coating enable high efficiency drilling and long tool life for processing stainless steels.

The actual product may differ from the displayed image.

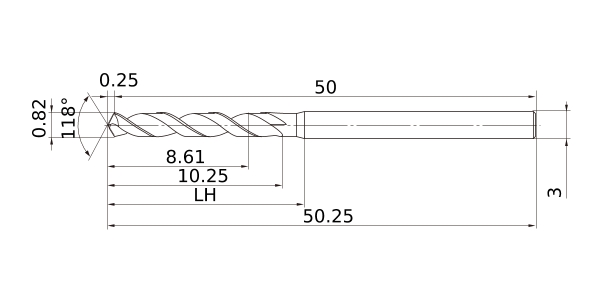

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 0.82
DCON 3
SIG 118°
LF 50
OAL 50.25
LCF 10.25
PL 0.25
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.014
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
