Drills >MGS >MGS0100L040B

Drills

MGS
（SOLID GUN DRILL）

MGS0100L040B

Product Information

  • MGS drills are suitable for use with shrink fit holders.

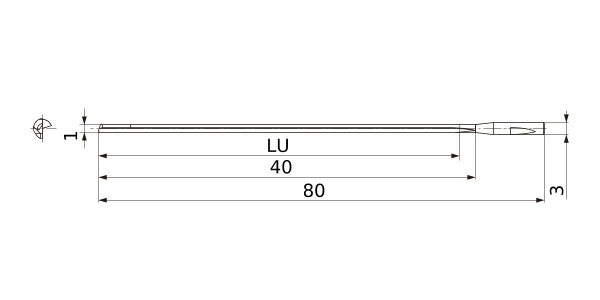

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Stock
Unit of Length M
DC 1
DCON 3
OAL 80
LCF 40
FHA 0°
ld 35
Effective Cutting Edge 1
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MGS0100L040B
CAD
