Drills >VAPDSCB >VAPDSCBD0330

Drills

VAPDSCB
（Short flute length, High precision, For counter boring）

VAPDSCBD0330

Product Information

  • Unique geometry offers high efficiency counter boring.　Excellent chip breaking and flat counterbored surface.

The actual product may differ from the displayed image.

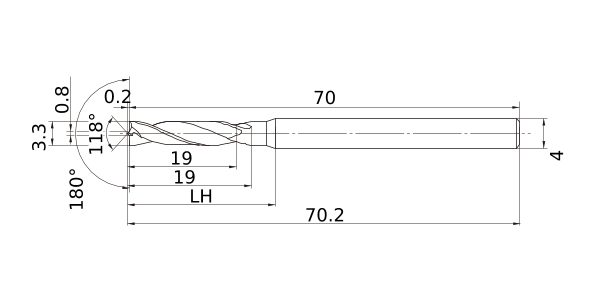

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC1 3.3
DC2 0.8
DCON 4
SIG1 180°
SIG2 118°
LF 70
OAL 70.2
LU 19
LCF 19
PL 0.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
