MVS0310X03S040

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Stock
Unit of Length M

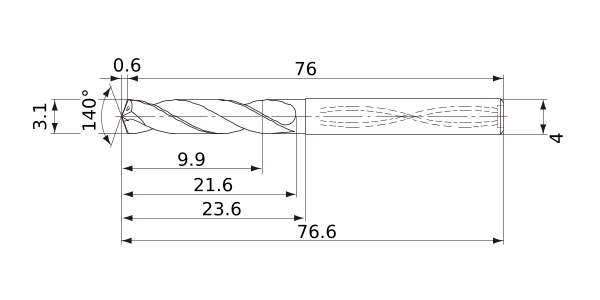

DC 3.1
DCON 4
SIG 140°
LF 76
OAL 76.6
LH 23.6
LU 9.9
LCF 21.6
FHA 30°
ld 3
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
