DCBSS
(Drill for hard brittle materials)
The actual product may differ from the displayed image.

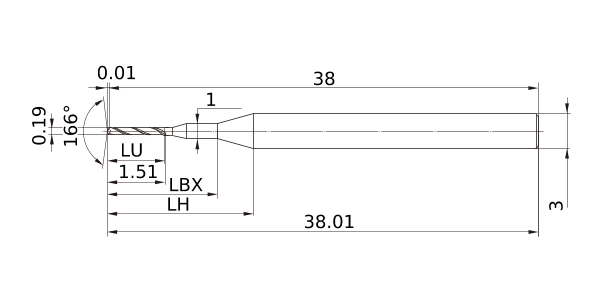

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 0.19 |
DCON | 3 |
SIG | 166° |
LF | 38 |
OAL | 38.01 |
LCF | 1.51 |
S10 | 1 |
PL | 0.01 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.009 |
Type of Coolant | External |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
