Drills >SEPDM >SEPDMD0050

Drills

SEPDM
（SE High Precision Drill Series）

SEPDMD0050

Product Information

  • Proprietary D-STH surface treatment provides sharp cutting edge, excellent welding resistance and smooth chip discharge.

The actual product may differ from the displayed image.

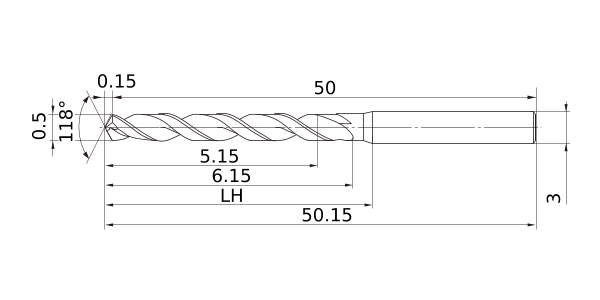

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 0.5
DCON 3
SIG 118°
LF 50
OAL 50.15
LU 5.15
LCF 6.15
PL 0.15
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.006
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
