Drills

SDLS
（STRAIGHT LONG SHANK DRILL）

SDLSD0170A100

Product Information

  • It is recommended to use when long overall length is demanded for preventing collision with workpiece with high rigidity.
  • For both machining center and manually operated machines.

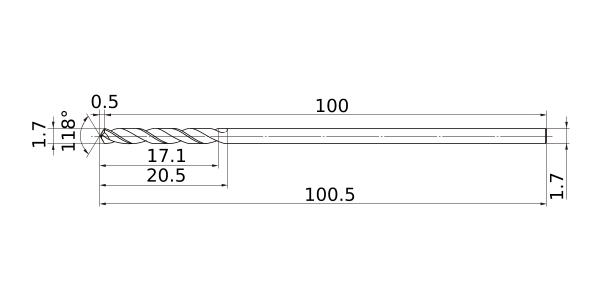

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 1.7
DCON 1.7
SIG 118°
LF 100
OAL 100.5
LU 17.1
LCF 20.5
PL 0.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.014
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
