Drills >MCT >MCT0638X05S070

Drills

MCT
（Drill For Composites）

MCT0638X05S070

Product Information

  • For CNC Machine / CFRP + Ti

The actual product may differ from the displayed image.

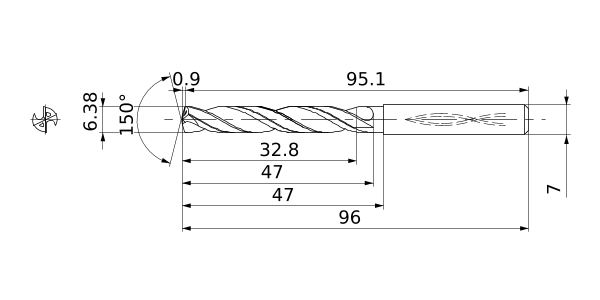

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade TF15
Stock
Unit of Length M
DC 6.38
DCON 7
SIG 150°
LF 95.1
OAL 96
LH 47
LU 32.8
LCF 47
FHA 30°
ld 5
PL 0.9
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant Internal
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
