Drills >DSAE >DSAE0710X03S080

Drills

DSAE
（SOLID CARBIDE DRILL WITH INTERNAL COOLANT）

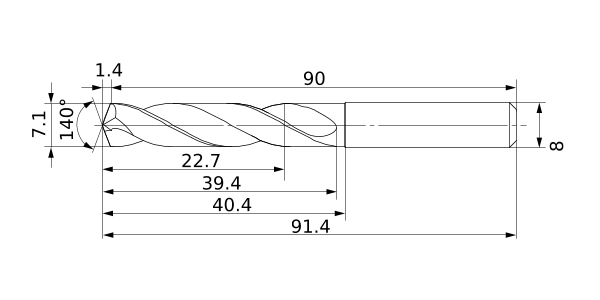

DSAE0710X03S080

Product Information

  • STRAIGHT CUTTING EDGE WITH DEDICATED HONING
  • DP9020 GRADE FOR MACHINING HEAT RESISTANT ALLOYS
  • SPECIAL MARGIN

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP9020
Stock
Unit of Length M
DC 7.1
DCON 8
SIG 140°
LF 90
OAL 91.4
LH 40.4
LU 22.7
LCF 39.4
FHA 28°
ld 3
PL 1.4
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant External
2D Model (DXF)
CAD data name Download
DSAE0710X03S080
