DLE_60_90
(Leading Drill Series)
The actual product may differ from the displayed image.

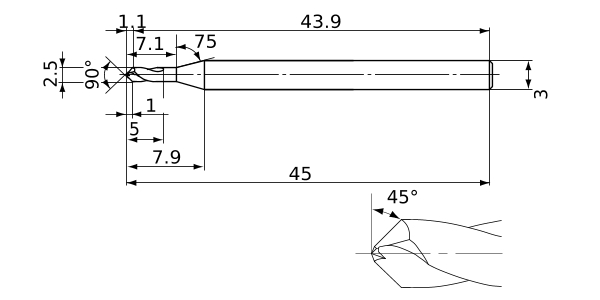

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | DP102A |
Stock | ![]() |
Unit of Length | M |
DC | 2.5 |
DCON | 3 |
KAPR | 45° |
SIG | 90° |
LF | 43.9 |
OAL | 45 |
LH | 7.9 |
LU | 1 |
LCF | 5 |
S10 | 7.1 |
FHA | 25° |
PL | 1.1 |
Effective Cutting Edge | 2 |
Type of Coolant | External |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
