Drills >DLE_120 >DLE0500S050P120

Drills

DLE_120
（Leading Drill Series）

DLE0500S050P120

Product Information

  • The thinning pocket promotes smooth chip discharge and brings excellent hole position accuracy.
  • Sharp cutting edge and high fracture resistance.
  • SINGLE ANGLE POINT
  • FOR AUTOMATIC LATHES

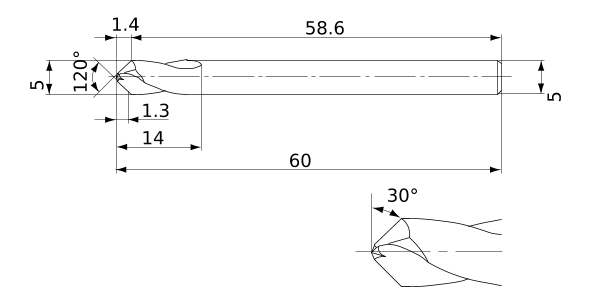

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Unit of Length M
DC 5
DCON 5
KAPR 30°
SIG 120°
LF 58.6
OAL 60
LU 1.3
LCF 14
FHA 25°
PL 1.4
Effective Cutting Edge 2
Type of Coolant External
2D Model (DXF)
CAD data name Download
DLE0500S050P120
CAD
