Drills >DWAE >DWAE0390X02S040

Drills

DWAE
（SOLID CARBIDE DRILLS FOR SWISS-TYPE AUTOMATIC & SMALL CNC LATHES）

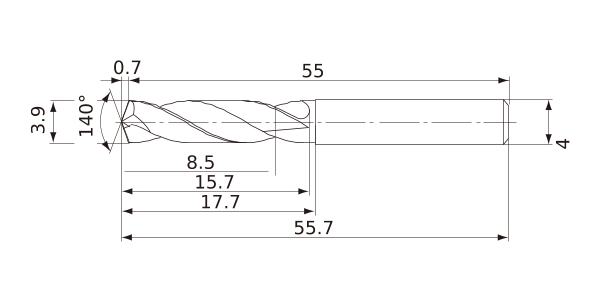

DWAE0390X02S040

Product Information

  • Optimal flute length for swiss-type automatic and small CNC lathes.
  • Low cutting resistance design.
  • The proprietary web thinning geometry ensures wide space for chip evacuation and offers low thrust.
  • Excellent lubricity and long-term durability, achieving excellent wear resistance at low to medium cutting speeds.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP102A
Stock
Unit of Length M
DC 3.9
DCON 4
SIG 140°
LF 55
OAL 55.7
LH 17.7
LU 8.5
LCF 15.7
FHA 30°
ld 2
PL 0.7
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant External
