DWAE
(SOLID CARBIDE DRILLS FOR SWISS-TYPE AUTOMATIC & SMALL CNC LATHES)
The actual product may differ from the displayed image.

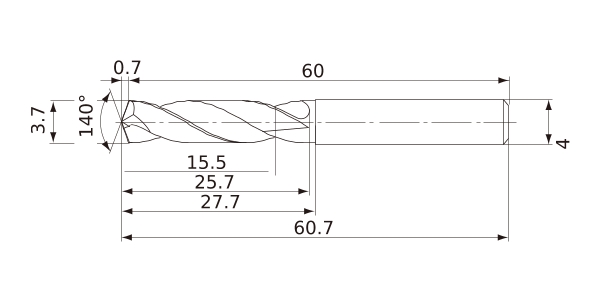

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | DP102A |
Stock | ![]() |
Unit of Length | M |
DC | 3.7 |
DCON | 4 |
SIG | 140° |
LF | 60 |
OAL | 60.7 |
LH | 27.7 |
LU | 15.5 |
LCF | 25.7 |
FHA | 30° |
ld | 4 |
PL | 0.7 |
Effective Cutting Edge | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.018 |
Type of Coolant | External |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
