Drills >DVAS-MINI >DVAS0120X30S040

Drills

DVAS-MINI
（TRISTAR Drills）

DVAS0120X30S040

Product Information

  • Mini Size
  • TRI-Cooling is optimal for small-diameter drills and can achieve more than double the conventional coolant discharge volume.
  • Increased coolant flow provides effective cooling even in difficult applications or when using an oil based cutting fluid.

The actual product may differ from the displayed image.

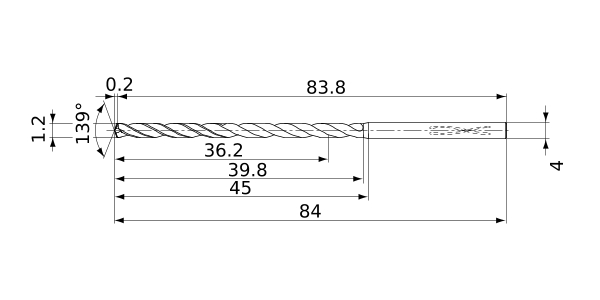

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1120
Stock
Unit of Length M
DC 1.2
DCONMS 4
SIG 139°
LF 83.8
OAL 84
LH 45
LU 36.2
LCF 39.8
ld 30
PL 0.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.01
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
DVAS0120X30S040
CAD
