Indexable End Mills >AJX >AJX08R202AM1030

Indexable End Mills

AJX
（MULTI FUNCTIONAL MILLING）

AJX08R202AM1030

Product Information

  • Economical due to the use of 3 cutting edges.
  • Suitable for high feed cutting.
  • Excellent chip disposal due to the standardization of coolant hole.
  • High rigidity due to the employment of double clamp mechanics.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

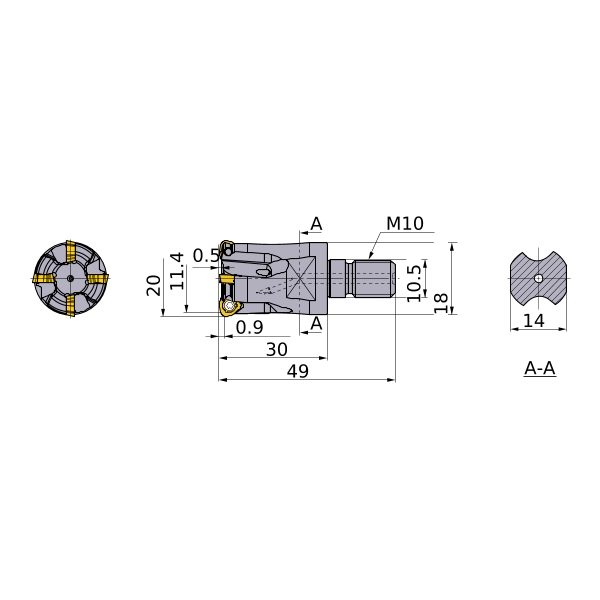

AZ 0.5
DC 11.4
DCX 20
DCON 10.5
DCSFMS 18
RMPX 3.5
LF 30
OAL 49
S10 14
APMX 0.9
GAMP +4°
GAMF -5°
WT 0.1
CRKS M10
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
