Indexable End Mills >ASX400 >ASX400R403AM1645

Indexable End Mills

ASX400
（GENERAL CUTTING）

ASX400R403AM1645

Product Information

  • Curved cutting edge and high rigidity holder
  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

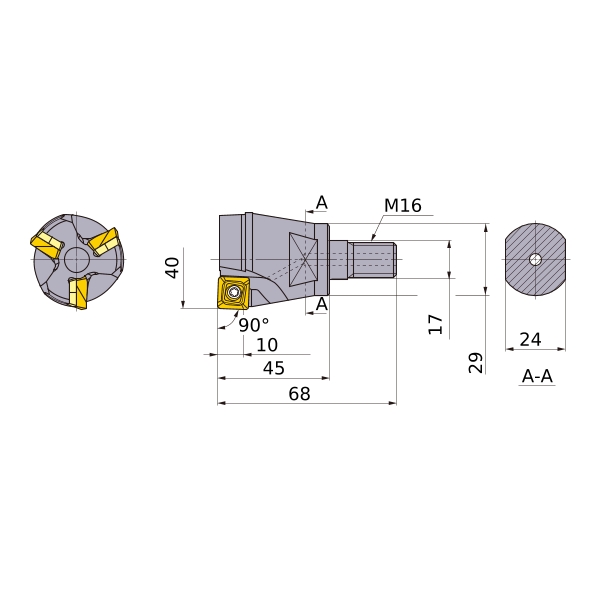

DC 40
DCON 17
DCSFMS 29
KAPR 90°
LF 45
OAL 68
S10 24
APMX 10
GAMP +11°
GAMF -11°
CRKS M16
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
ASX400R403AM1645
CAD
