Indexable End Mills

BRP8


BRP8PR634LS32

Product Information

  • 11°positive insert.
  • Round shape insert gives strong cutting edge.
  • A wide variety of sizes.
  • Suitable for roughing of moulds and dies.
  • Max.depth of cut 5.5mm.
  • Multi functional milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

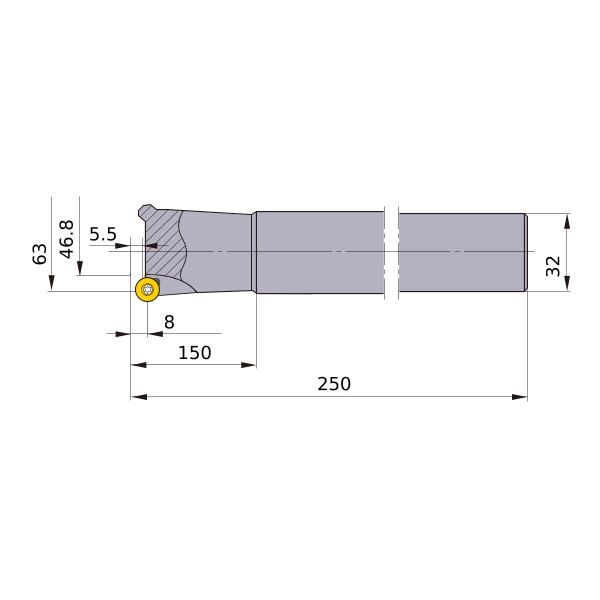

Unit of Length M
AZ 5.5
DC 46.8
DCX 63
DCON 32
LF 250
LH 150
APMX 8
GAMP +5°
GAMF 0°
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
BRP8PR634LS32
CAD
