Indexable End Mills

KSMG


KSMGR40S32

Product Information

  • The same cutter body covers groove widths of 1.25-6.00mm.
  • Side face grooving tool for machining centres.
  • The minimum cutting diameter is φ25 for internal grooving.

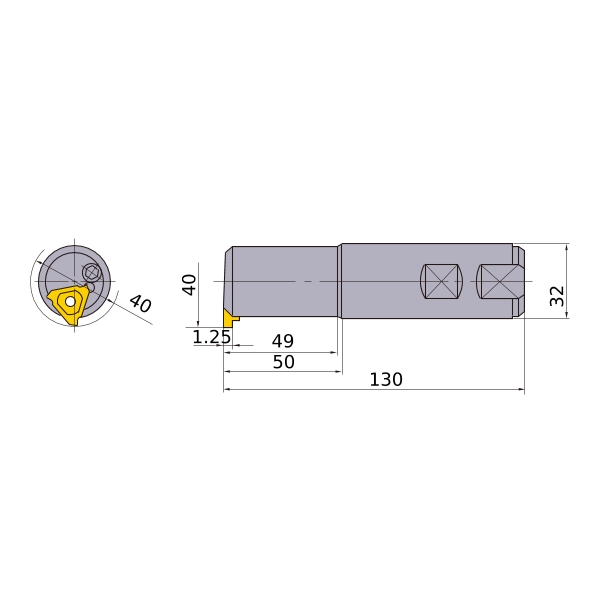

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 40
DCON 32
LF 130
LH 50
CW 1.25
S10 49
Cutting item count: CICT 1
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
KSMGR40S32
CAD

3D Detail Model (STP,STL)
CAD data name Download
KSMGR40S32
CAD

3D Light Model (STP,STL)
CAD data name Download
KSMGR40S32_MR0_2_CW1_25
CAD CAD
KSMGR40S32_MR0_2_CW1_45
CAD CAD
KSMGR40S32_MR0_2_CW1_5
CAD CAD
KSMGR40S32_MR0_2_CW1_75
CAD CAD
KSMGR40S32_MR0_2_CW2
CAD CAD
KSMGR40S32_MR0_2_CW2_3
CAD CAD
KSMGR40S32_MR0_3_CW2_5
CAD CAD
KSMGR40S32_MR0_3_CW2_6
CAD CAD
KSMGR40S32_MR0_3_CW2_7
CAD CAD
KSMGR40S32_MR0_3_CW2_8
CAD CAD
KSMGR40S32_MR0_3_CW3
CAD CAD
KSMGR40S32_MR0_3_CW3_2
CAD CAD
KSMGR40S32_MR0_3_CW3_3
CAD CAD
KSMGR40S32_MR0_3_CW3_5
CAD CAD
KSMGR40S32_MR0_3_CW4
CAD CAD
KSMGR40S32_MR0_4_CW4_2
CAD CAD
KSMGR40S32_MR0_4_CW4_3
CAD CAD
KSMGR40S32_MR0_4_CW4_5
CAD CAD
KSMGR40S32_MR0_4_CW4_7
CAD CAD
KSMGR40S32_MR0_4_CW5
CAD CAD
KSMGR40S32_MR0_4_CW6
CAD CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
