Indexable End Mills

OCTACUT


OCTACUT503S32R

Product Information

  • 20°positive insert.
  • Compatible with 8-corner use insert and round type insert.
  • Capable of multiple functions.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

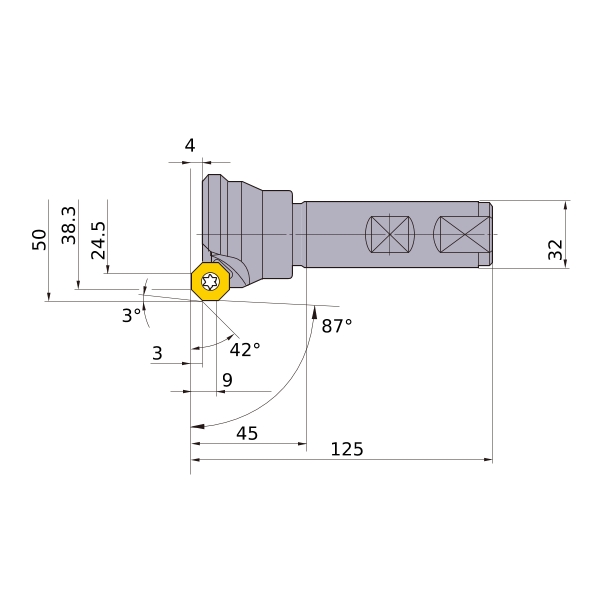

A1 3
AZ 4
DC 38.3
DCX 50
DCON 32
KAPR 42°
LF 125
LH 45
APMX 9
DCINX 24.5
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
