Indexable End Mills

PMF


PMF06306A22R

Product Information

  • 2 directional cutting with large overhang.
  • Excellent surface accuracy .
  • Excellent wall accuracy.
  • 2 directional cutting with large overhang.
  • Excellent straightness.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

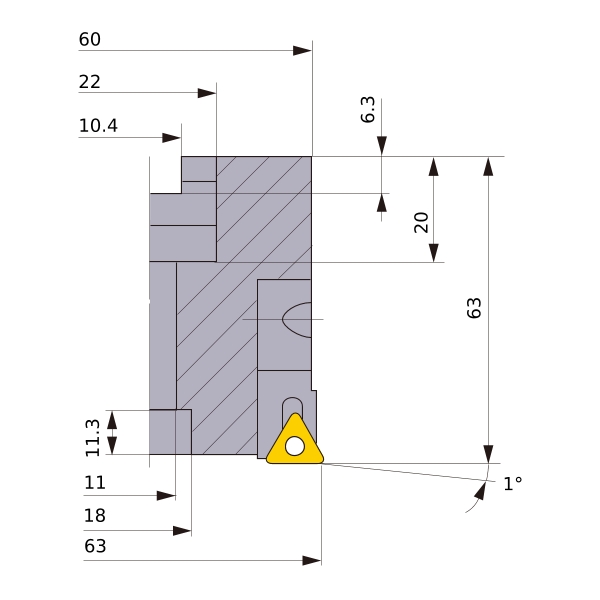

DC 63
DCON 22
DCSFMS 60
DAH 11
DCCB 18
L8 6.3
LF 63
CBDP 20
LCCB 11.3
KWW 10.4
GAMP 0°
GAMF 0°
Cutting item count: CICT 6
Peripheral effective cutting edge count: ZEFP 6
