Indexable End Mills

PMR


PMR406304BR

Product Information

  • Unique shape of curved edge gives high rigidity and low resistance.
  • Anti Fly Insert mechanism
  • 2 directional cutting with large overhang.
  • 2 directional cutting with large overhang.
  • Tough body

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

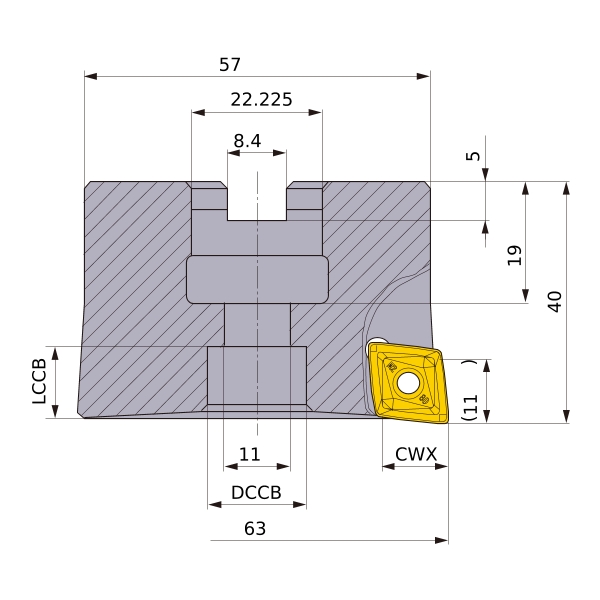

DC 63
DCON 22.225
DCSFMS 57
DAH 11
L8 5
LF 40
CBDP 19
KWW 8.4
APMX 11
GAMP +5°
GAMF -6°
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
