Indexable End Mills >ARX >ARX25R204SA20S

Indexable End Mills

ARX


ARX25R204SA20S

Product Information

  • Standardization of coolant holes.
  • 15°positive, high tolerance M-class insert

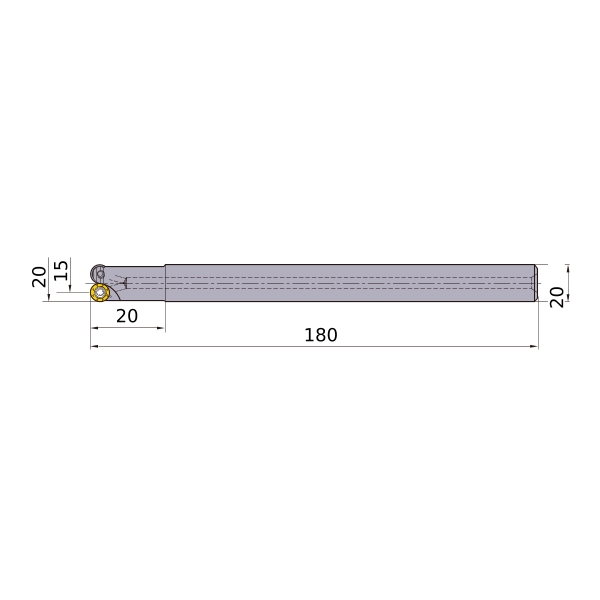

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 15
DCX 20
DCON 20
RMPX 9.23
LF 180
LH 20
APMX 2.5
RE 2.5
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
