Indexable End Mills >ARX >ARX30R122SA10LW

Indexable End Mills

ARX


ARX30R122SA10LW

Product Information

  • Standardization of coolant holes.
  • 15°positive, high tolerance M-class insert

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

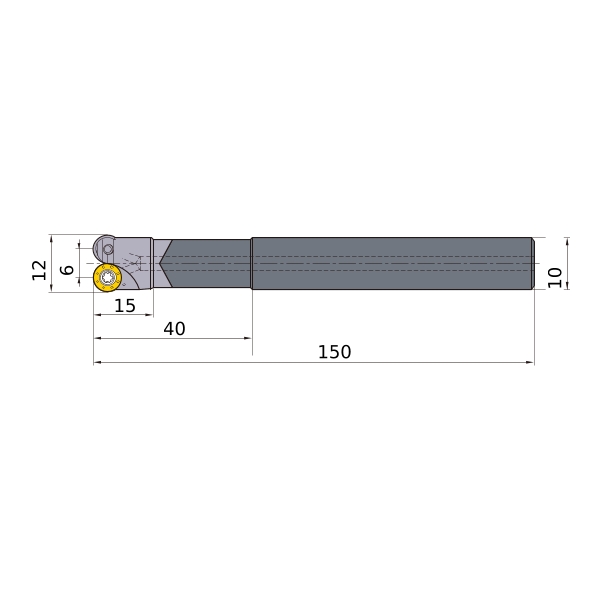

DC 6
DCX 12
DCON 10
RMPX 90
LF 150
LH 40
LB 15
APMX 3
RE 3
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
