Indexable End Mills >ARX >ARX25R163M08A30
ARX
The actual product may differ from the displayed image.

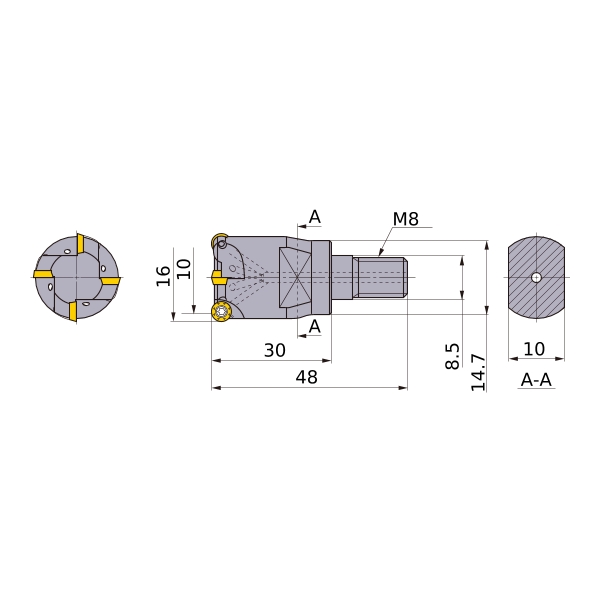

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
DC | 10 |
DCX | 16 |
DCON | 8.5 |
DCSFMS | 14.7 |
LF | 30 |
OAL | 48 |
S10 | 10 |
APMX | 2.5 |
CRKS | M8 |
Cutting item count: CICT | 3 |
Peripheral effective cutting edge count: ZEFP | 3 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
Insert for Rotating Tools
Spare Parts
