Indexable End Mills >ARX >ARX30R163M08A30

Indexable End Mills

ARX


ARX30R163M08A30

Product Information

  • Standardization of coolant holes.
  • 15°positive, high tolerance M-class insert

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

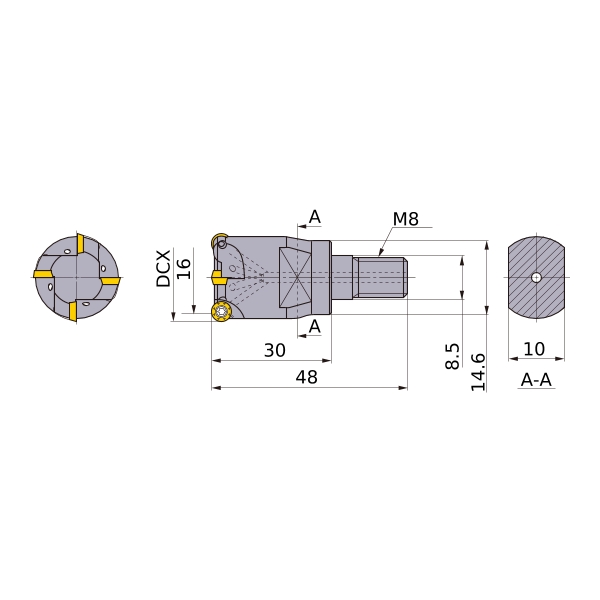

DC 16
DCON 8.5
DCSFMS 14.6
LF 30
OAL 48
S10 10
APMX 3
CRKS M8
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
