Indexable End Mills

APX4000_LONG
（For Deep Cutting）

APX4KR4008SA42S056A

Product Information

  • Air coolant through.
  • High accuracy, high quality vertical wall.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

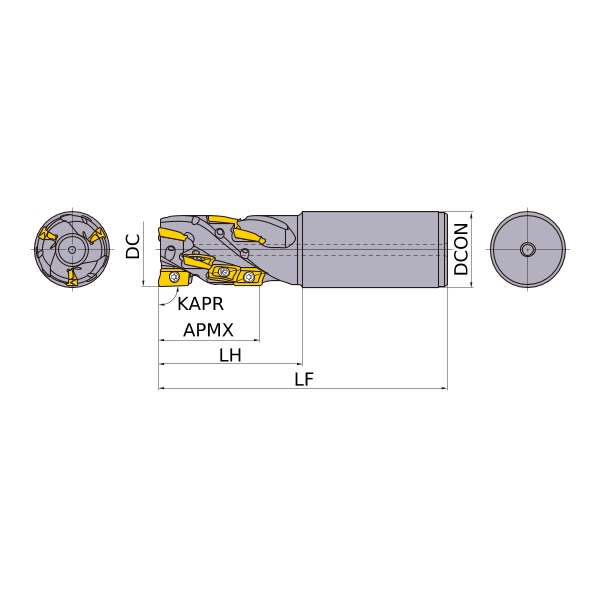

DC 40
DCON 42
KAPR 90°
LF 160
LH 80
APMX 56
GAMP +12°
GAMF +9°
Cutting item count: CICT 8
Peripheral effective cutting edge count: ZEFP 2
2D Model (DXF)
CAD data name Download
APX4KR4008SA42S056A
CAD
Disclaimer
