Indexable End Mills >ARP >ARP6PR5005SA42M

Indexable End Mills

ARP
（Round insert cutter for difficult-to-cut materials）

ARP6PR5005SA42M

Product Information

  • High runout accuracy when indexing inserts.
  • Strong clamping system
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.

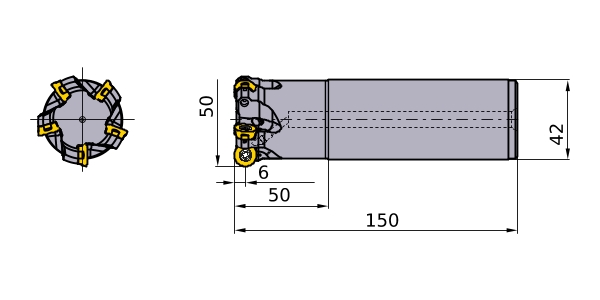

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
A1 2.5
AZ 1.7
DC 38
DCX 50
DCON 42
RMPX 2.9°
LF 150
LH 50
APMX 6
GAMP +4°
GAMF -6°
WT 1.47
Cutting item count: CICT 5
Peripheral effective cutting edge count: ZEFP 5
